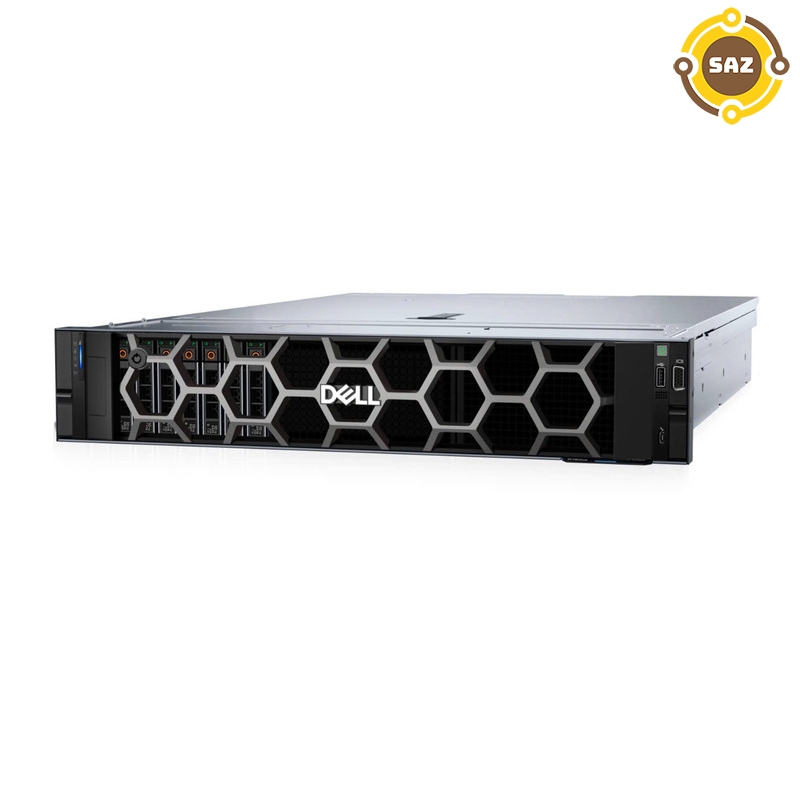

DELL POWEREDGE RACK 2U

DELL POWEREDGE R760XS 8X3.5IN HOT PLUG RACK 2U (S4510/16GB/H755/4TB SAS/2X800W)

DELL POWEREDGE R760XS 8X3.5IN HOT PLUG RACK 2U (S4510/16GB/H755/4TB SAS/2X800W)

Mã sản phẩm: R760xs_8x3.5in

DELL POWEREDGE R760XS 8X3.5IN HOT PLUG RACK 2U (S4510/16GB/H755/4TB SAS/2X800W)

Processor: 1 x Intel Xeon Silver 4510 2.4GHz, 12C/24T, 30M Cache, Turbo, HT (150W) DDR5 4400,LGA4677

Memory: 1 x Dell 16GB RDIMM, DDR5 5600MT/s, Dual Rank

Network Controller: On-Board Broadcom 5720 Dual Port 1Gb LOM + Broadcom 5720 Quad Port 1GbE BASE-T Adapter, OCP NIC 3.0

Raid Controller: PERC H755 Adapter PCIe Gen4 SAS 12Gb/s RAID Controller, 8GB NV Cache

Hard Drive: Dell 4TB 7.2K RPM NLSAS 12Gbps 3.5in Hot-plug Hard Drive

Optical Drive: Option

Management : iDRAC9, Enterprise 16G

Power Supply: Dual, Hot-plug, Fully Redundant Power Supply (1+1), 800W, Mixed Mode

Xem thêm >

Giá: Liên hệ
Liên hệ

chi tiết sản phẩm

Máy Dell R760xs là một máy chủ rack 2U, có thể hỗ trợ tối đa 2 CPU Intel Xeon Scalable thế hệ thứ 4, với hiệu suất mạnh mẽ và khả năng xử lý đa nhiệm. Máy Dell R760xs cũng có thể hỗ trợ tối đa 64 GB bộ nhớ DDR5-4000, với tốc độ truyền dữ liệu nhanh hơn và tiết kiệm điện năng hơn so với DDR4.

Một điểm nổi bật của máy Dell R760xs là khả năng lưu trữ linh hoạt và mở rộng, với nhiều tùy chọn khay đĩa và loại ổ cứng khác nhau. Máy Dell R760xs có thể hỗ trợ tối đa 16 ổ cứng SAS/SATA/NVMe 2.5 inch hoặc 12 ổ cứng SAS/SATA 3.5 inch, với dung lượng tối đa lên đến 244.48 TB. Máy Dell R760xs cũng có thể hỗ trợ 2 ổ cứng NVMe 2.5 inch phía sau, để tăng khả năng khởi động và chạy hệ điều hành.

Máy Dell R760xs được thiết kế để chạy các ứng dụng IT phổ biến nhất, như máy chủ web, máy chủ email, máy chủ cơ sở dữ liệu, máy chủ ảo hóa, và máy chủ lưu trữ. Máy Dell R760xs cũng được tích hợp các tính năng bảo mật và quản lý tiên tiến, như TPM 2.0, Secure Boot, Secure Erase, System Lockdown, iDRAC9, OpenManage Enterprise, và CloudIQ.

Thông số kỹ thuật

Processor Up to two 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor
Memory • 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s, supports registered ECC DDR5 DIMMs only
Storage
controllers
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e; Software RAID: S160
GPU Options 2 x 75 W SW, LP
Drive Bays Front bays:
• 0 drive bay
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 160 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB
• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/
SSD) max 244.48 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
(supported only with 12 x 3.5-inch SAS/SATA HDD/SSD
configuration)
Hot swap Redundant Power Supplies • 1800 W Titanium 200—240 VAC or 240 HVDC
• 1400 W Platinum 100—240 VAC or 240 HVDC
• 1100 W Titanium 100—240 VAC or 240 HVDC
• 1100 W LVDC -48 — (-60) VDC
• 800 W Platinum 100—240 VAC or 240 HVDC,
• 700 W Titanium 200—240 VAC or 240 HVDC
• 600 W Platinum 100—240 VAC or 240 HVDC
Cooling Options • Air cooling
Fans • Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans
Dimensions and Weight • Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 707.78 mm (27.85 inches) – without bezel
 721.62 mm (28.4 inches) – with bezel
• Weight – Max 28.6 kg (63.0 lbs.)
Form Factor 2U rack server
Embedded Management • iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
Bezel Optional LCD bezel or security bezel
OpenManage Software • CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
Mobility OpenManage Mobile
OpenManage Integrations • BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security  Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC 2 x 1 GbE LOM
Network options 1 x OCP card 3.0 (optional)
Ports Front Ports:
• 1 x iDRAC Direct (Micro-AB USB) port, 1 x USB 2.0, 1 x VGA
Internal Ports: 1 x USB 3.0 (optional)
Rear Ports
• 1 x Dedicated iDRAC Ethernet port, 1 x USB 2.0, 1 x USB 3.0, 1 x
VGA, 1 x Serial (optional)
PCIe • 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
• 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)
Operating System and Hypervisors • Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
• Canonical Ubuntu Server LTS
OEM-ready version available From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit Dell.com ->
Solutions -> OEM Solutions.

===================================
